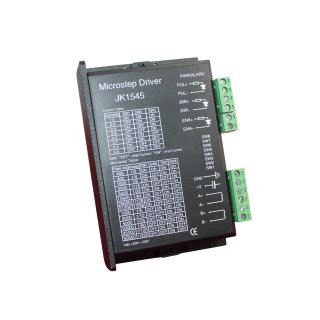

JK1545DC Microstepping Drive

Item number: 51322

Category: Endstufen


65,80 €

including 20% VAT., plus shipping

From pcs. Price per unit
3 57,00 €
10 52,00 €
Available now!
pcs.


Description

The JK1545DC is a high performance microstepping driver based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drivers in the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors.

Features

  • High performance, cost-effective
  • Supply voltage up to +60 VDC
  • Output current up to 4,5 A
  • Self-adjustment technology
  • Pure-sinusoidal current control technology
  • Pulse input frequency up to 300 KHz
  • TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
  • Suitable for 2-phase and 4-phase motors
  • Support PUL/DIR and CW/CCW modes
  • Short-voltage, over-voltage, over-current protections
    Application

    Suitable for a wide range of stepper motors, from NEMA size 17 to 34. It can be used in various kinds of machines, such as X-Y tables, labelling machines, laser cutters, engraving machines, pick-place devices and so on. It is ideal for the applications where low noise, low heating, high speed and high precision are required.
