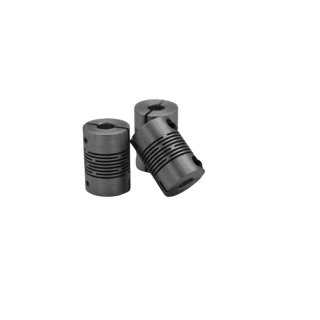

Shaft Coupling with Clamp Hubs WSV-K 30 Aluminium Inner Diameter 6H7/6H7

Item number: 51118

Category: Mini Coupling Aluminium


34,00 €

including 20% VAT., plus shipping (Standard)

From pcs. Price per unit
10 30,60 €
Available now!
pcs.


Description



Coupling

Type: WSV-K 30 AL

Description of the product:

This product is the best on the market and is used in small servo drives, stepper motors, measuring- and control systems, speedometers, pulse generators, and others. Absolutely zero backlash, rigid in torsion, flexible and maintenance-free coupling, machined from a single piece of metal. This coupling was designed for drive systems with small dimensions and for low torque. Twist stable and not temperature-sensitive, no lubrication necessary. Easy to assamble with clamp hubs and screws DIN 912-M2,5.

Item details:

Size                                   30
Material                               Aluminium
Length (L)                            40 mm
Outer diameter (DA)             30 mm
Inner diameter (D)                6 mm
Inner Diameter (D1)              6 mm
S (DIN 912-12.9)                  M4x10
Torque                                 10 Nm
Rotation speed                    6000 min-1
Permitted shaft offset
Angle                                  1°
Axial                                   +/- 0,4 mm
Lateral                                 +/- 0,3 mm
Torsional rigidity                   5,0 x 10³ Nm/Rad

On application:

Other dimensions, version with keyway DIN 6885


Shipping weight: 0,05 Kg
Product weight: 0,05 Kg
