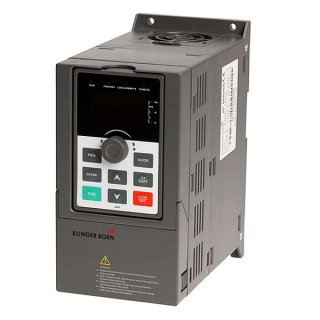

Frequency converter PI500 1.5kW 1Ph-230V

The frequency inverters of the PI500 series in the performance class 0.75kW to 7.5kW replace the already proven PI9130 series and are characterized by an excellent price-performance ratio. The gentle start not only protects the material and reduces wear, it also allows you to operate your motor much more energy-efficiently and thus save costs

Thanks to the simple parameterization and commissioning, you can put your machine into operation quickly and efficiently. The basic functions such as starting and stopping with preset ramp times and frequency setting using the rotary encoder on the control panel are already set at the factory.

Important information

EMC requirements according to EN61800-3

Selection criteria

Difficult start-up behavior of the drive or short ramp times, or controlling several motors with one FI	Select FU 1-2 performance classes higher
Cable length > 25m	Select FU 1 performance class higher, use throttle
1Ph frequency converter with 3-phase 230V output	Check whether the connected motor can be used for 230V (delta), otherwise use 3Ph-FU.
Match the performance data of the FI with the motor data	The rated current of the motor must be below the maximum output current of the FI

Additional Information

These frequency inverters are high-quality devices with the latest technology and top features. The frequency converters can be easily programmed for the desired applications via the control panel.
Please note that connection and programming may only be carried out by well-trained personnel.
The manual must be read before connection and commissioning.
When connecting, all VDE and especially EMC regulations must be observed.

Technical data

Area		specification
Mains input (voltage and frequency)		1-Ph 220V, 50/60Hz or 3Ph 380V, 50/60Hz Other voltages on request, e.g.: 3Ph-220V 50/60Hz; 3Ph-480V 50/60Hz; 3Ph-690V 50/60Hz
Output voltage		1Ph devices: Up to max. 3x230V 3Ph devices: Up to max. 3x400V
Control part	Input tolerance	Voltage ± 10% Frequency ± 5%
	Tax system	High performance vector control with DSP
	Output frequency	U/f 0...3200Hz, vector mode 0...300Hz
	Rule method	U/f control, vector control sensorless, vector control with sensor (optional)
	Starting torque	0.5Hz 150%
	Speed accuracy	± 0.5% vector control without sensor ± 0.02% vector control with sensor
	tact	PWM clock frequency 0.5...16KHz
	Auto Torque increase	Adjustable 0-30%, automatic torque increase from 1Hz in U/f mode
	Acceleration-deceleration ramp	0... 6500 s adjustable
	overload function	G-Type: 150% for 60s, 180% for 2s
Control functions	Tax options	Control panel, connection terminal, communication interface
	Start signal	Forward, reverse, jog (jog), multi-speed
	Stop mode	Spout to stop, adjustable, free spout
	DC brake	Adjustable
Protective functions	Inverter protection function	Over-voltage protection, under-voltage protection, over-current protection, over-load protection, over-temperature protection
	IGBT temperature	Available on display
	Fan control	Adjustable
	engine temperature surveillance	Possible with PT100
I/O specifications	8 digital inputs	47 functions programmable on channels (e.g. forward run, reverse run, jog, etc.), 16 speed levels
	3 analog inputs	Programmable, e.g. connection of an external potentiometer for speed setting; 0-10V; 0...20mA
	2 analog outputs	Programmable, 0-10V; 0...20mA
	Control panel	Input and output
	2 relay outputs	Programmable, 250V NC=5A NO=3A AC, 1A-DC30V
Control panel	Set frequency	Programmable via UP-DOWN buttons or potentiometer
	Control line	8-wire, I/O T568A; I/O T568B standard (RJ-45 connector)
	Control panel	Removable, external Installation possible
	Power display	Adjustable parameters such as frequency, speed, motor current, voltage and much more.
	Error display	Error output in the event of a malfunction via the display
Communication interfaces	RS485	Integrated
Environmental conditions	Ambient temperature	-10°C... +40°C
	Storage temperature	-20°C... +65°C
	humidity	Max. 90%, non-condensing
	Installation height	0... 1000 m, reduced performance from 1000 m
	Vibrations	5.9m/s² (=0.6g)
	filter	C3 integrated from 5.5kW
	Protection class	IP20
Installation conditions	Distances	>=100mm distance to housing wall (fan side) Maintain >=10mm distance to the sides and provide sufficient ventilation
Installation conditions	Cooling method	Air cooling with fan
Norms	Safety standard: IEC61800-5-1: 2007 EMC: IEC61800-3: 2005
Country of manufacture	China
