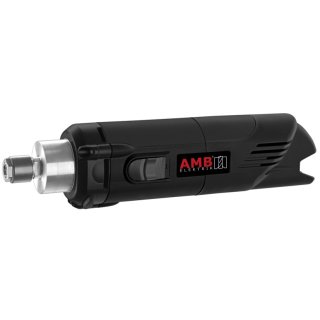

AMB milling motor 1050 FME-1 / 1050 Watt / 5.000 ? 25.000 1/min
Description
Milling motor 1050 FME-1
MAXX-Power motor 1050 Watt
Slender design for the best ergonomics
Full wave electronics for constant power and speed
Technical Specifications
Rated input power 1050 Watt
Idle speed 5000-25000 1 / min
Collet 8 mm
Clamping neck Ø 43 mm
Machine weight 1.7 kg
Product Features
Smooth start and starting current limitation
Special winding of the motor against dust and particle contamination
Stainless steel motor flange with double bearing for higher milling forces
Electronic overload protection prevents the motor from overheating
Stop carbon brushes to protect the motor
Suitable for actuating flexible shafts
Mains cable with patented quick-lock system 4 m rubber cable.
Available in lengths of 4 and 6 meters as an accessory.
Delivery
Precision Collet 8 mm
Noise / Vibration Information
Vibration emission value ah 5.0 m / s2
Uncertainty K value of 1.5 m / s2
Sound pressure level LpA 78 dB (A)
Uncertainty value K 3.0 dB (A)
Sound power level LwA 89 dB (A)
Uncertainty value K 3.0 dB (A)
LpA = A-weighted sound pressure level, LwA = A-weighted sound power level
K = Measurement uncertainty value, ah = Triaxial vibration emission level
Measured values ??determined according to EN 60745th
| Shipping weight: | 3,30 Kg |
| Product weight: | 3,30 Kg |
